Rotary Air Locks

Rotary Air Locks

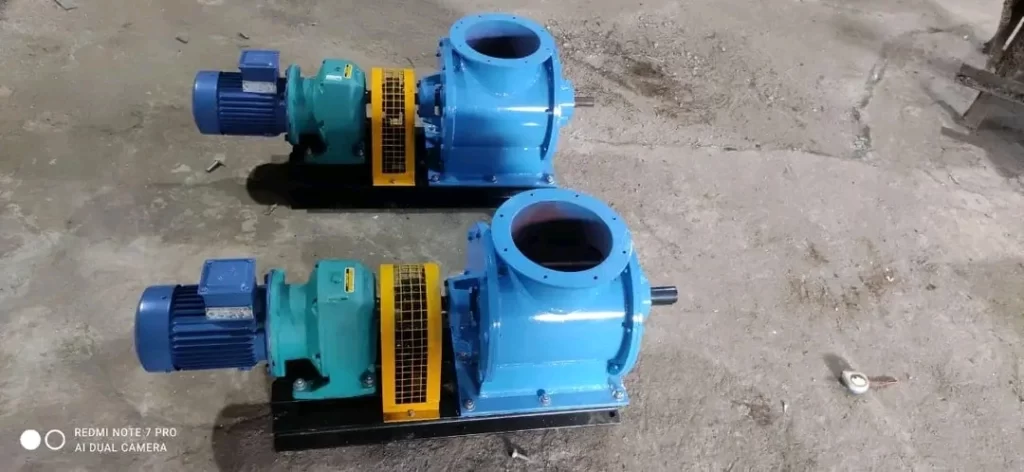

Rotary airlock valves are simple but very important machines that control how bulk materials move out of a system while keeping the air sealed inside. You will usually find them in dust collection and pneumatic conveying systems. Their main job is to stop air leakage and keep pressure steady, whether the system is running in positive or negative pressure.

SUBHAWATI VENTILATION SYSTEMS rotary airlocks can easily handle powders, granules, and even rough or abrasive materials. They are built with strong outer bodies, proper internal clearances, and durable parts so they can work smoothly in tough industrial conditions.

These rotary airlocks are made to last long and require very little maintenance. Each unit is selected based on the material type, temperature, and airflow in your plant.

Technical Specification Details: –

  • Material Discharge Capacity: 10 to 50,000 Kg (also depends on material density)
  • Size Range: 150 mm to 600 mm.
  • Type: Rotary Airlock Valve
  • Material of Construction: Cast Iron / Mild Steel / Stainless Steel
  • Operation: Automatic, Continuous Duty
  • Brand: SUBHAWATI VENTILATION SYSTEMS
  • Application: Designed for dust collection systems, pneumatic conveying, and bulk material handling, Dust Collection Systems (Bag Filters, Cyclone Separators, Pulse Jet Collectors)
  • Pneumatic Conveying of Powders & Granules
  • Cement, Food, Chemical & Pharmaceutical Industries
  • Biomass, Wood Chips & Pellet Handling
  • Rice, Flour & Sugar Mills
  • Power Plants & Foundries.
