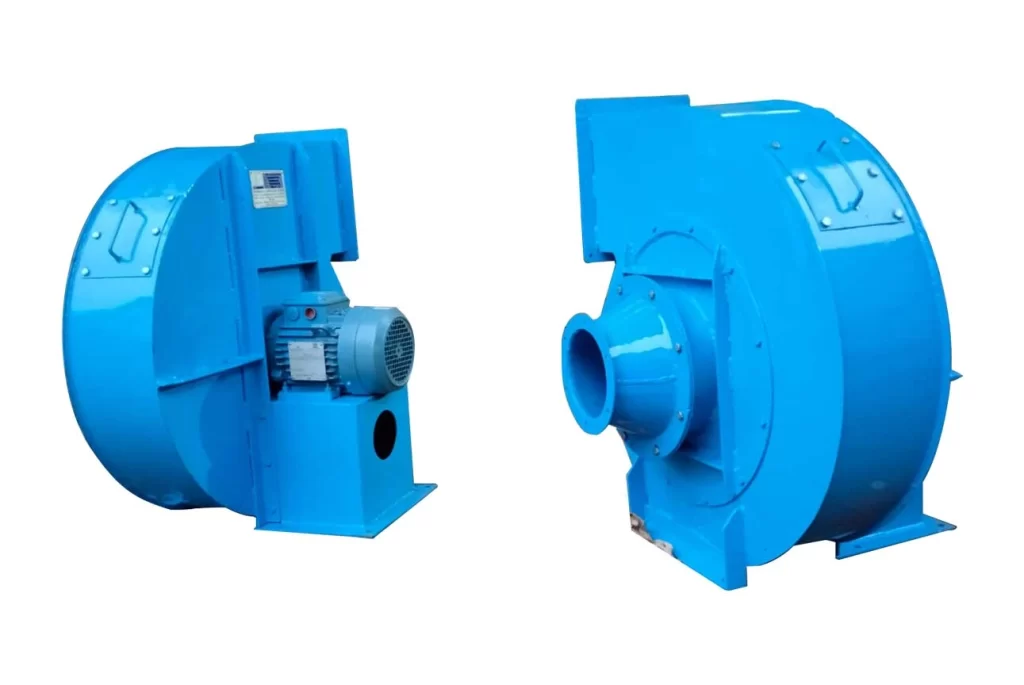

Low Pressure Centrifugal Fan/Blowers

Low Pressure Centrifugal Fan/Blowers

Centrifugal Blowers are well engineered, high efficiency air moving blowers, incorporating all the latest improvements to suit any type of industrial application like Fume or Vapour exhaust, Dust Handling, Material Conveying, Induced Draft, Forced Draft and so forth in foundries, Power Plants, Engineering Industries, Cement and Chemical producing plants and the like.

In single inlet single width design with backward curved, straight radial, straight or flat backward sloped bladed impeller for low, medium and high-pressure application:

Technical Specification Details: –

• Airflow Range – 500 to 5,00,000 m3/hr
• Static Pressure – 30 to 350 mmWG
• Rotor Diameter 180mm to 2400mm.
• Operating Temp.- 20 to 450 C.
• Impeller Type – Backward Curved, Backward Inclined.
• Drive type – Direct/V-Belt/Coupling Driven.
• Material of Construction – Carbon Steel, Stainless Steel, PP + FRP, MS + FRP.
• Application – General Air Supply & Exhaust, Explosion proof Air supply & smoke removal
