Technical Specification Details: –

• Airflow Range – 500 to 4,50,000 m3/hr
• Static Pressure – 50 to 750 mmWG
• Rotor Diameter – 180mm to 2400mm.
• Operating Temp.- 20 to 450 C.
• Impeller Type – Backward Curved, Backward Inclined.
• Drive type – Direct/V-Belt/Coupling Driven.
• Material of Construction – Carbon Steel, Stainless Steel, PP + FRP, MS + FRP.
• Application – Industrial Boiler, Bag Filter, Dust Collector, Process Fan, etc.

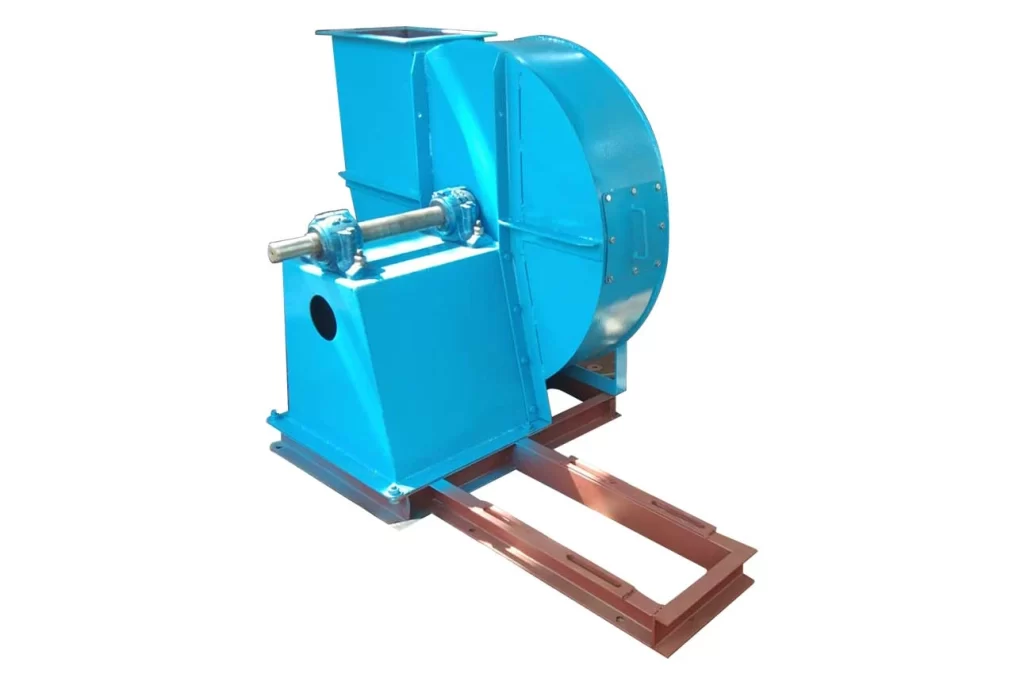

Our manufacturing company will provide these Medium Pressure fans for various applications, such as Steam Boiler, to identify the combustion process in a large boiler, Thermal Oil Heater, Bag filter, Dust Collectors, Cooling Towers, etc.
